Combi-CSS

Combi-CSS

Type:high capacity

Make:combilift

Power:Electric

Max Capacity:30 tonne

Container Slip-Sheet

The CSS loading system has been specifically designed and engineered for the fast and efficient loading of 20” and 40” containers with a maximum capacity of 30,000 kg (30 t).

The CSS allows for the rapid loading and unloading of containers whilst significantly increasing operator safety and minimising product damage.

A fully loaded 40” container can be loaded in as little as six minutes.

Consisting of a free standing platform with a dual-directional motor-driven pulling mechanism that moves a Hardox 500 steel sheet the CSS guides goods safely into containers.

With its versatility to manoeuvre both standard and long loads the CSS is suitable for applications in a wide variety of industries including:

  • Aluminium
  • Building materials
  • Logistics
  • Metals
  • Plastics
  • Steel
  • Timber
  • Warehousing
  • Hydraulic Rear Barrier
  • Operators Monitor
  • Container length Detection

Type:high capacity

Make:combilift

Power:Electric

Max Capacity:30 tonne

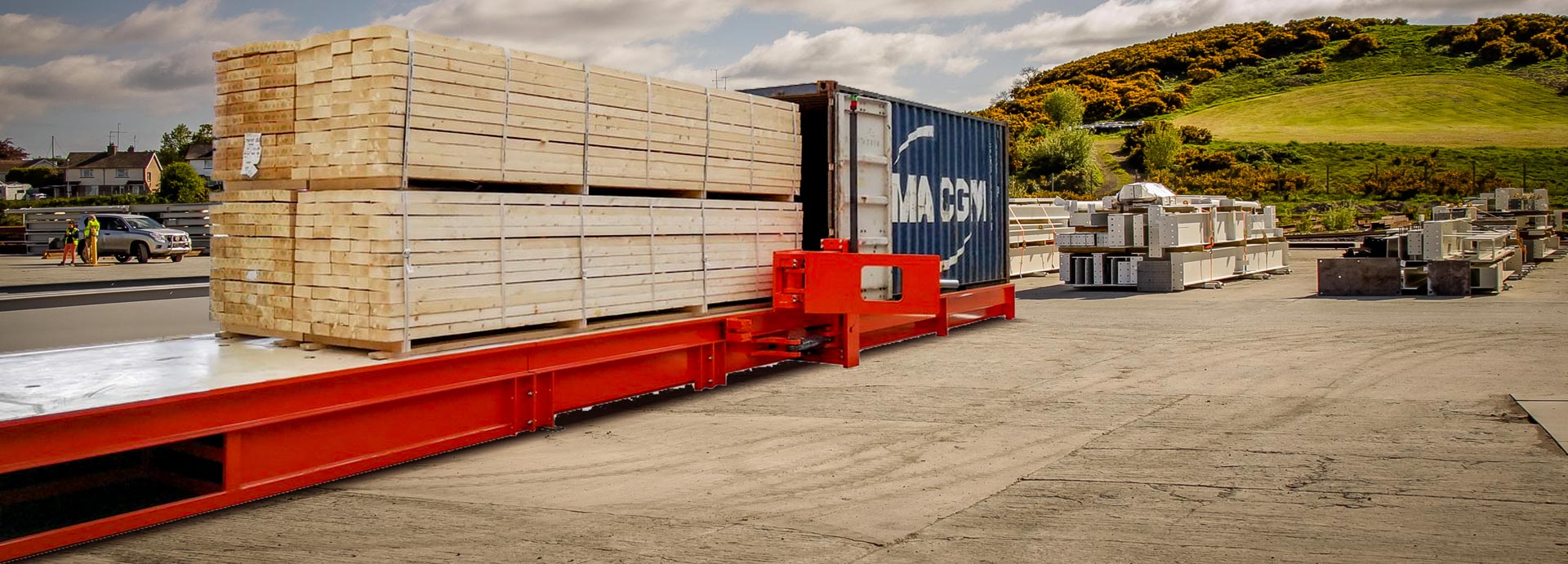

Combi Container Slip-Sheet (CSS)
Load Capacity (kg) 30,000
Container Sizes 20’ / 30’ / 40’
Unit Dimensions (mm) 16,560 × 3,250 × 626
Motor 37kW 3 Phase
Cycle Time 40’ in 6 mins
